简介 INTRODUCTION

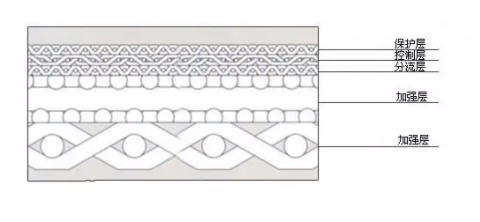

五层烧结网是一种应用最广泛的标准结构的烧结网，是将五层不锈钢丝网按顺序疊放在一起，经过 真空烧结而成的一种新型过滤材料，_般为五层结构，分为保护层、过滤控制层、分散层、支撑骨架 层、骨架层五部分。该材料具有过滤精度稳定，强度好，易于反清洗等特性。现已被广泛应用在石 油、化工、化纤、制药、冶金、电力、水处理、食品饮料等行业。

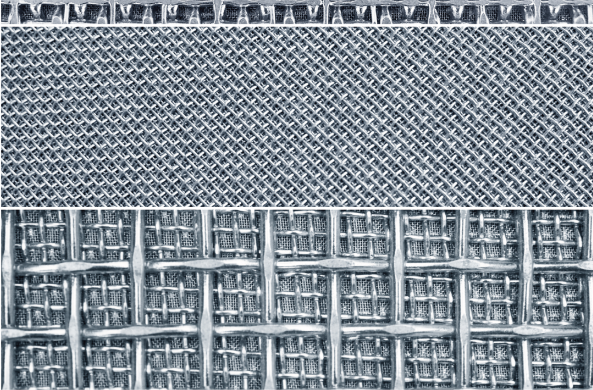

Sintered five layers mesh is a sintering network of the most widely used standard structure, is the five layer of stainless steel screen sequentially stacked put together. After vacuum sintering and a new filtration material, is a five layer structure in general, as a protection layer, a filtering control layer, layer, a supporting skeleton layer, frame layer five parts of the dispersed. The material has good strength, filtration precision, easy backwashing characteristics. It has been widely used in petroleum, chemical, pharmaceutical, chemical, metallurgy, electric power, water treatment, food and beverage industries.

特性 CHARACTERSTICS

-强度好，刚性好：具有极高的机械强度和耐压强度。加工、焊接与组装性能良好，使用方便。

-高精度，高稳定性：过滤层在第二层，使其得到了很好的保护和分流，过滤精度均可达到均匀一致 的过滤性能，保证其具有高稳定性。

■耐腐蚀性强，耐热性强：精选材质，耐腐蚀性好，耐热性好，可用于-200X：-600X：的温度及酸碱环 境的过滤。

-清洗简单：极佳的逆流清洗效果的表层过滤结构，所以逆流清洗效果佳，可反复使用，寿命长。

■ Good strength, good rigidity, high mechanical strength and compressive strength. Machining, welding and assembling of good performance, easy to use.

■ High precision, high stability, filtration layer in the second layer, make it get good protection and shunt, filtering accuracy of filtering performance can be uniform, ensure that it has high stability.

■ Strong corrosion resistance, heat resistance, selected materials, good corrosion resistance, good heat resistance, Can be used to - 200°C to 600°C temperature and acid and alkali environment.

■ Cleaning is simple: surface filtration structure of countercurrent washing effect is very good, so the cleaning effect is good, can be used repeatedly, long service life.

技术参数 TECHNICAL PARAMETERS

■标准厚度 /Standard thickness: 1.7mm

■标准材质/Standard material： 316L

■标准尺寸 /Standard size： 500x 1000mm / 600 x 1200mm /1000 x 1200mm
